Main features:
OVERVIEW

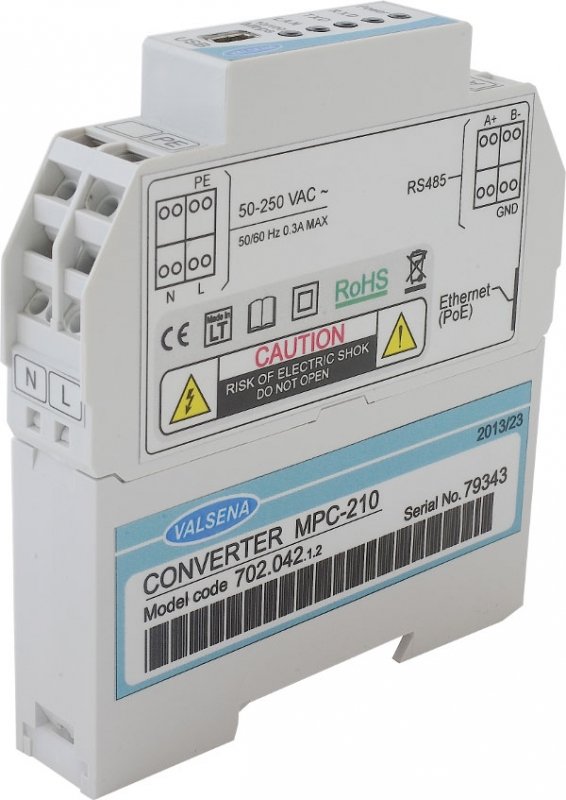

Controller MPC-210 designed for data reading from energy carrier meters, storing to local archive and data exchange between RS232/RS485 and Ethernet.
SPECIFICATION
| Serial interfaces | RS232 or RS485 |
| RS485 direction control | auto |
| Supported protocols | Modbus TCP/IP, Modbus RTU, DynDNS and other |
| Other interfaces | mini USB |
| Serial interface data transfer speed | from 300 to 38.4 kbps |
| Data archive memory | from 1 to 8 MB (2MB by default) |
| Insulation breakdown voltage | > 1,5 kV |
| Power supplier | 50-250VAC (50-60Hz), 50-250VDC or PoE (IEEE 802.3af) |
| Power consumption | 3W |
| Indication | LED (Power, TX, RX, Lan, 10/100Mbps) |
| Enclosure | DIN32 rail mountable, IP20 |
| Dimensions | 18 mm x 85 mm x 97 mm |
| Operating conditions | from – 30 oC to + 50 oC / 80 % RH, without condensate |
| Storage conditions | from – 40 oC to +60 oC |

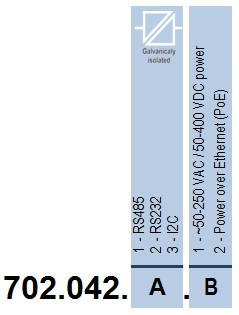

MANUFACTURERS CODE
