MPC-134

OVERVIEW

MPC-143 controller is created for data logging and analyzing in a real time. Using GPRS/GSM modem, controller sends saved data and reports to remote users.
Controller supports most of protocols and interfaces (RS232, RS485, MBUS, Opto, Discrete inputs, Discrete outputs, Analog inputs), so it can be used with different brands and models of counters. Our special “TRANSPARENT” data transfer protocol enables controllers to use with practically any device.
Device supports wide range of protocols (and can be extended by our programmers, if you need some special). For data exchange over GPRS/GSM and/or any Serial interfaces, controller uses Modbus TCP/IP, Modbus RTU, IEC60870-5-104:2000, SNTP and other protocols.
Our clients – GAS, Heat, Watering suppliers, Industry companies in EU, Ukraine, Central Asia.

DEFAULT FEATURES

• Reading data from energy carrier meters;
• “TRANSPARENT” remote data reading from counters (special manufacturers protocols);
• Discrete input/output ports;
• Analog inputs;
• Independent data log (up to  8MB) with real time stamp;
• Remote configuration and upgrading possibilities over GPRS/GSM;
• Wide range of interfaces: GSM/GPRS, RS232, RS485, Opto, Mbus;
• Wide choise of Analog inputs (Current, Voltage, Thermoresistance (Pt100, Pt1000, NTC), Resistance);
• Some interfaces are galvanically isolated.

BENEFIT TO THE CLIENT

• Economy, because controller does a lot of mechanic work, so your professionals can do more important work;
• Increase efficiency, because the data are sent to a central computer continuously. If connection is lost, data will be safe kept in controllers memory, until connection will be reestablished;
• Increases security, because the relevant information is rapidly shorten response time;
• Versatile, because this controller can retrieve data from different manufacturers and even different types of meters;
• Simplicity, because of intuitive control and optimally assembled LED’s it is easy to monitor and maintain equipment;
• A good partner, because we not only help you customize and will make equipment, but also flexibly adapt controller, if your demands will change.

CUSTOMIZING DEVICE

The exceptional feature of this device – a flexible hardware and software configuration, it depends on customer needs, you can choose the desired interface and functionality.

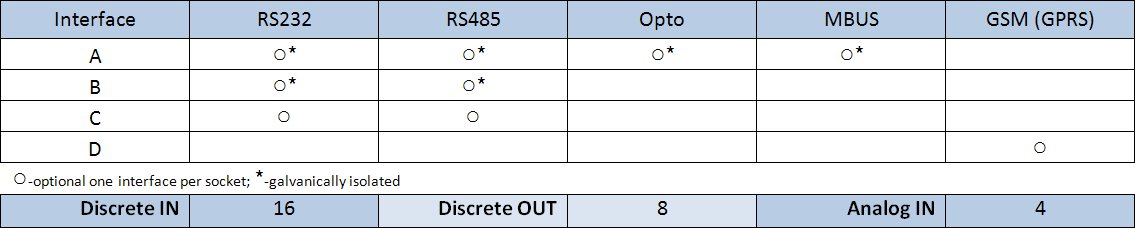

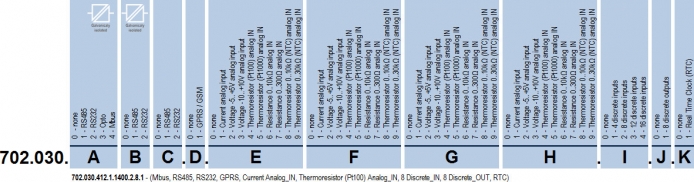

Manufacturers code:
