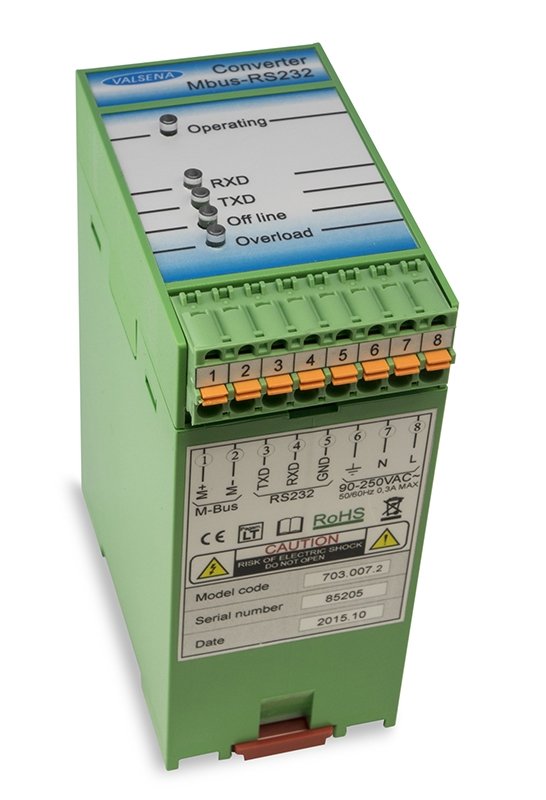

MBus-RS232/485

Main features:

RS485 transmission direction: automatic
MAX amount of MBus devices: 250 (375mA)
MBus short connection protection: yes
Power supplier: 90-250V ~, 50-60Hz
Mounting type: on DIN rail

Share

Description

Technical specifications

Downloads

Description

OVERVIEW

Converter RS232/RS485-MBus for convertion of RS232 or RS485 signals to MBus and vice versa.

SPECIFICATION

RS485 direction control	auto
MBus permissible load	up to 250 devices (375 mA)
Protection of MBus short connection	yes, triggering current 500 mA
Short connection reaction time	programmable – 1-4s (recover 10-60s)
Mbus line voltage	mark – 36 – 40 V. Space 24 – 27 V
Data transfer speed	from 300 to 9600 bods
Galvanic isolation	power– RS232/RS485 power – Mbus Mbus – RS232/RS485
Insulation breakdown voltage	> 1,5 kV
Power supplier	90-250V~, 50-60Hz
Power consumption	not loaded up to 3,5W, fully loaded up to 20W
Indication	LED
Enclosure	DIN rail mountable
Dimensions	45 mm x 75 mm x 110 mm
Operating conditions	from – 30^oC to + 50 ^oC / 80 % RH, without condensate
Storage conditions	from – 40^oC to +60 ^oC
