DIN-32

OVERVIEW

DIN-32 controller is created for data logging and analyzing of Discrete channels in a real time. Controller can be used as standalone device or as extension module (up to 32 Discrete channels) for other controllers, like MPC-374, MPC-330 and etc.. Using RS232, RS485 or Ethernet, controller sends saved data and reports to remote users.

Controller supports basic interfaces (Discrete inputs, RS232, RS485, Ethernet and USB) and wide range of protocols (and can be extended by our programmers, if you need some special). For data exchange over Ethernet and/or any Serial interfaces, controller uses Modbus TCP/IP, Modbus RTU, IEC60870-5-104:2000, SNTP and other protocols.
Our clients – GAS, Heat, Watering suppliers, Industry companies in EU, Ukraine, Central Asia.

DEFAULT FEATURES

• Up to 32 Discrete input ports;
• Independent data log (up to 8MB) with real time stamp;
• Remote configuration and upgrading possibilities over Ethernet;
• Interfaces: Ethernet, RS232, RS485, USB;
• Galvanically isolated interfaces and power supply.

BENEFIT TO THE CLIENT

• Economy, because controller does a lot of mechanic work, so your professionals can do more important work;
• Increase efficiency, because the data are sent to a central computer continuously. If connection is lost, data will be safe kept in controllers memory, until connection will be reestablished;
• Increases security, because the relevant information is rapidly shorten response time;
• Simplicity, because of intuitive control and optimally assembled LED’s it is easy to monitor and maintain equipment;
• A good partner, because we not only help you customize and will make equipment, but also flexibly adapt controller, if your demands will change.

CUSTOMIZING DEVICE

The exceptional feature of this device – a flexible hardware and software configuration, it depends on customer needs, you can choose the desired interface and functionality.

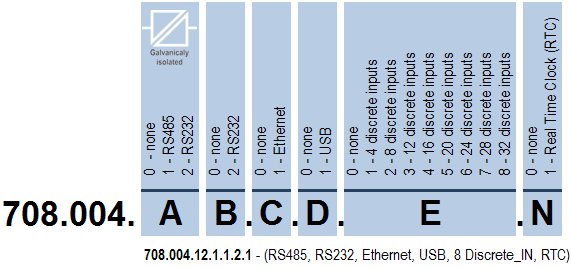

Manufacturers code:
